Omnigrad TA535
Thermowell for temperature sensors

For use in general purpose industrial applications and processes generating medium to high stress

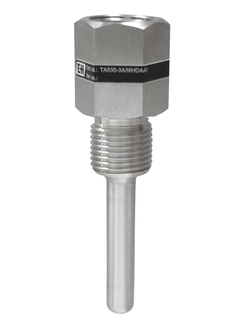

  • Product picture thermowell TA535 ©Endress+Hauser

The thermowell with a hexagonal extension is employed in industrial applications which generate medium to high stress. For pipes or tanks that have threaded process connections.
It can accommodate sensors with a diameter of 6 mm (0.24 in) and can also be used in combination with thermometers without a thermowell. It is available with NPT, gas and M20 connections (on thermometer and process sides).

Benefits

  • Several types of process connections can be selected as standard

  • Several outer diameters can be selected as standard

  • Connections to the thermometer: ½" NPT, G ½” and M20x1.5 thread

  • Made in SS 316L / 1.4404

  • The material certification can be selected as standard

Field of application

The thermowell with a hexagonal extension is employed in industrial applications which generate medium to high stress. For pipes or tanks that have threaded process
connections. It can accommodate sensors with a diameter of 6 mm (0.24 in) and can also be used in combination with thermometers without a thermowell.

Features and specifications

Documents / Manuals / Software

Accessories / Spare parts

Predecessor / Successor

Predecessor: TA530, TA531
