Promass 83M

Show all products in product finder without filter

This product is no longer available.

Please check new generation in the section predecessor / successor or contact your local Endress+Hauser entity.

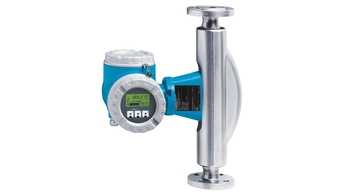

Coriolis mass flowmeter

Predecessor

Successor

Promass 83F

Flowmeter with premium accuracy, robustness and extended transmitter functionality. Highest measurement performance for liquids and gases under varying, demanding process conditions.
Read more

Loading price

Prices temporarily unavailable

Price after login

Price on request

from CHF ??.-

Simple products
Easy to select, install and operate

Technical excellence

Simplicity

What is FLEX?

Standard products
Reliable, robust and low-maintenance

Technical excellence

Simplicity

What is FLEX?

High-end products
Highly functional and convenient

Technical excellence

Simplicity

What is FLEX?

Specialized products
Designed for demanding applications

Technical excellence

Simplicity

Variable

What is FLEX?

FLEX selections	Technical excellence	Simplicity
F L E X Fundamental selection Meet your basic measurement needs	Technical excellence	Simplicity
F L E X Lean selection Handle your core processes easily	Technical excellence	Simplicity
F L E X Extended selection Optimize your processes with innovative technologies	Technical excellence	Simplicity
F L E X Xpert selection Master your most challenging applications	Technical excellence	Simplicity Variable

Learn more about the FLEX selections

Measuring principle

Coriolis
Product headline

The universal and multivariable meter for liguids and gases
Sensor features

S-DAT, T-DAT, F-Chip
Validation
Quick-Set-up
3 Totalizer
Pulsating flow
Advanced diagnostics
Batching
Concentration measurement
Nominal diameter range

DN 8...80
DN 8...25(MP)
5/16"...3"
5/16"...1"(MP)
Max. measurement error

Mass flow:+-0.5 %
Measuring range

0...180'000 kg/h
0...18'000 kg/h (MP)
Max. process pressure

PN 16...100
PN350 (MP)
Cl 150...600
JIS 10...63K
Medium temperature range

-50...+150°C
(-58...+302°F)
Degree of protection

IP 67
NEMA 4x
Display/Operation

Four line backlit
Touch control
Outputs

4...20mA
Pulse/Frequency (10KHz), active/passive
Relays/Status
Inputs

Status
Current input
Digital communication

HART
PROFIBUS PA
Profibus DP
FOUNDATION Fieldbus
Hazardous area approvals

ATEX
FM
CSA

Measuring principle

Coriolis
Product headline

The universal and multivariable flowmeterfor liquids and gases
Sensor features

S-DAT, T-DAT,F-Chip
Validation
Quick-Set-up
3 Totalizer
Pulsating flow
Advanced diagnostics
Batching
Concentration measurement
Nominal diameter range

DN 8...80
DN 8...25(MP)
5/16"...3"
5/16"...1"(MP)
Max. measurement error

Mass flow:+-0.1%
Volume flow: +-0.25%
Measuring range

0...180'000 kg/h
0...18'000 kg/h (MP)
Max. process pressure

PN 16...100
PN350 (MP)
Cl 150...600
JIS 10...63K
Medium temperature range

-50...+150°C
(-58...+302°F)
Degree of protection

IP 67
NEMA 4x
Display/Operation

Four line backlit
Touch control
Outputs

4...20mA
Pulse/Frequency (10KHz), active/passiveRelays/Status
Inputs

Status
Current input
Digital communication

HART
PROFIBUS PA
Profibus DP
FOUNDATION Fieldbus
Hazardous area approvals

ATEX
FM
CSA

Measuring principle

Coriolis
Characteristic / Application

The universal and multivariable flowmeterfor liquids and gases
Ambient temperature

-20...+65°C
(-4...+140°F)
Process temperature

-50...+150°C
(-58...+302°F)
Process pressure absolute

PN 16...100
PN350 (MP)
Cl 150...600
JIS 10...63K
Wetted parts

Titan
Output

4...20mA
Pulse/Frequency (10KHz), active/passiveRelays/Status
Certificates / Approvals

ATEX
FM
CSA

Promass 83M

Predecessor

Successor

Promass 83F

Measuring principle

Product headline

Sensor features

Nominal diameter range

Max. measurement error

Measuring range

Max. process pressure

Medium temperature range

Degree of protection

Display/Operation

Outputs

Inputs

Digital communication

Hazardous area approvals

Measuring principle

Product headline

Sensor features

Nominal diameter range

Max. measurement error

Measuring range

Max. process pressure

Medium temperature range

Degree of protection

Display/Operation

Outputs

Inputs

Digital communication

Hazardous area approvals

Measuring principle

Characteristic / Application

Ambient temperature

Process temperature

Process pressure absolute

Wetted parts

Output

Certificates / Approvals

Kit power s.b. 40/8X/65 220V REx000

Kit p.s.b.40/8X 220V REx000 HE

Kit p.s.b.40/8X 220V REx000 HE

Kit power s.b. 40/8X/65 220V REx120 Ex

Kit p.s.b.8X 220V REx120 HE Ex

Kit p.s.b. 40/8X 220V REx330 Ex

Kit p.s.b.8X 220V REx330 HE Ex

Kit P.s.b. 40/8X/65 24V REx000

Kit p.s.b.8X 24V REx000 HE

Kit P.s.b. 40/8X/65 24V REx120 Ex

Kit P.s.b. 8X 24V REx120 HE Ex

Kit P.s.b. 40/8X 24V REx330 Ex

Kit P.s.b. 8X 24V REx330 HE Ex

Kit 10 fuses 250 VAC T800 MA

Kit 10 fuses 250 VAC T 2A00

Kit meas.amplifier Promass 83/8ME WEA EX

Kit meas. amplifier 83 WEA HE EX

Kit meas. amplifier PMASS 83 EES EX

Kit meas. amplifier 83 EES HE EX

Kit meas. amplifier PMASS 83 SEA EX

Kit meas. amplifier 83 SEA HE EX

Kit meas. amplifier Pmass 83 CN EX

Kit meas. amplifier 83 CN HE EX

Kit commodul current/freq./2Relay Ex

Kit I/O current/frequency/2Relay HE EX

Kit com 53/55/83/93 curr./freq. out Ex

Kit I/O current/frequency out HE EX

Kit commodul Iout passive/Frequency Exi

Kit I/O Iout passive/Frequency HE Exi

Kit commodul Iout active/Frequency Exi

Kit I/O Iout active/Frequency HE Exi

Kit I/O Profibus PA Ex

Kit I/O 50/53/55/80/83 Profib. PA HE Ex

Kit I/O Foundation Fieldbus C02 Ex

Kit I/O Foundation Fieldbus C14 EX

Kit I/O Foundation Fieldbus C02 Ex

Kit I/O Foundation Fieldbus C14 EX

Kit I/O Foundation Fieldbus HE C02 EX

Kit I/O Foundation Fieldbus HE C14 EX

Kit com 83/65 2x Iout aktiv Exi
