Picture of electromagnetic flowmeter Proline Promag 10D for basic applications in the water industry

Proline Promag 10D
electromagnetic flowmeter

The highly cost-effective flowmeter, available as compact wafer

10D
Loading price
Prices temporarily unavailable
Price on request
from CHF ??.-

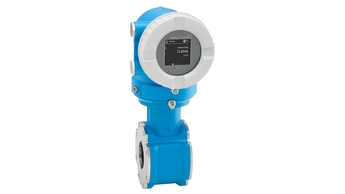

Picture of electromagnetic flowmeter Proline Promag 10D for basic applications in the water industry ©Endress+Hauser

Proline Promag 10D for basic applications in the water industry

Specs at a glance

  • Max. measurement error

    Volume flow: ±0.5 % o.r. ± 2 mm/s (±0.5 % o.r. ± 0.08 in/s)

  • Measuring range

    9 to 4700 dm3/min (2.5 to 1250 gal/min)

  • Medium temperature range

    0 to +60 °C (+32 to +140 °F)

  • Max. process pressure

    PN 16, Class 150, 10K

  • Wetted materials

    Liner: Polyamide
    Electrodes: 1.4435 (316L)

Field of application

Promag D, available as wafer version, is designed for all applications where space is at a minimum. It is the preferred choice for basic applications in the water industry. Combined with the highly cost-effective Promag 10 transmitter, Promag 10D is the ideal solution for measurement of liquids for various applications and available in a compact or remote version.

  • The measuring principle is virtually independent of pressure, density, temperature and viscosity

  • For basic water applications; optimized for limited space and plastic pipe installations.

Device properties

  • Short installation length and low weight

  • Integrated ground disks made of stainless steel

  • International drinking water approvals

  • 2‐line display with push buttons

  • Device in compact or remote version

  • HART

Benefits

  • Easy, fast centering of the sensor – innovative housing construction

  • Energy-saving flow measurement – no pressure loss due to cross-section constriction

  • Cost-effective – designed for easy applications and direct integration

  • Safe operation – display provides easy readable process information

  • Fully industry compliant – IEC/EN/NAMUR

  • Maintenance-free – no moving parts
