Promag 53H

Show all products: Flow Electromagnetic

This product is no longer available.

Please check new generation in the section predecessor / successor or contact your local Endress+Hauser entity.

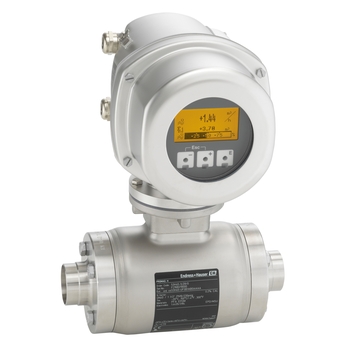

Electromagnetic flowmeter - Proline Promag 53H

Predecessor

Successor

F

L

E

X
Proline Promag H 100 / 5H1B

The specialist for hygienic applications with an ultra-compact transmitter. Dedicated to demanding applications in the food and beverage as well as in life sciences industries.
Read more

Loading price

Prices temporarily unavailable

Price after login

Price on request

from CHF ??.-
F

L

E

X
Proline Promag H 300 / 5H3B

Specialist for hygienic applications with a compact, easily accessible transmitter. Dedicated to demanding applications in the food and beverage as well as in the life sciences industries.
Read more

Loading price

Prices temporarily unavailable

Price after login

Price on request

from CHF ??.-
F

L

E

X
Proline Promag H 500 / 5H5B

Specialist for hygienic applications, as remote version with up to 4 I/Os. Dedicated to demanding applications in the food and beverage as well as in the life sciences industries.
Read more

Loading price

Prices temporarily unavailable

Price after login

Price on request

from CHF ??.-

Simple products
Easy to select, install and operate

Technical excellence

Simplicity

What is FLEX?

Standard products
Reliable, robust and low-maintenance

Technical excellence

Simplicity

What is FLEX?

High-end products
Highly functional and convenient

Technical excellence

Simplicity

What is FLEX?

Specialized products
Designed for demanding applications

Technical excellence

Simplicity

Variable

What is FLEX?

FLEX selections	Technical excellence	Simplicity
F L E X Fundamental selection Meet your basic measurement needs	Technical excellence	Simplicity
F L E X Lean selection Handle your core processes easily	Technical excellence	Simplicity
F L E X Extended selection Optimize your processes with innovative technologies	Technical excellence	Simplicity
F L E X Xpert selection Master your most challenging applications	Technical excellence	Simplicity Variable

Learn more about the FLEX selections

Liquids

Measuring principle

Electromagnetic
Product headline

The flowmeter for smallest flow rates with flexible system integration. For demanding hygienic applications.
Sensor features

Flexible installation concept – numerous hygienic process connections. Energy‐saving flow measurement – no pressure loss due to cross‐section constriction. Maintenance‐free – no moving parts. Liner made of PFA. Sensor housing made of stainless steel (3-A, EHEDG).
Transmitter features

Quality – software for filling & dosing, density, electrode cleaning and also advanced diagnostics. Easy calculation – bidirectional totalizers. Automatic recovery of data for servicing. 4‐line backlit display with touch control. Device in compact or remote version.
Nominal diameter range

DN 2...150
1/12"...6"
Wetted materials

Liner: PFA
Electrodes: 1.4435 (316L); Alloy C22, 2.4602 (UNS N06022); Tantalum; Platinum
Process Connections: stainless steel, 1.4404 (F316L); PVDF; PVC adhesive sleeve
Seals: O-ring seal (EPDM, FKM, Kalrez), aseptic molded seal (EPDM, FKM, silicone)
Grounding Rings: stainless steel, 1.4435 (316L); Alloy C22, 2.4602 (UNS N06022); tantalum
Measured variables

Volume flow
Max. measurement error

±0.2%
Measuring range

0...600 m3/h
Max. process pressure

PN16 to 40
Medium temperature range

-20...+150°C
(-4...+302°F)
Ambient temperature range

-20...+60°C
-40...+60°C (optional)
Degree of protection

IP 67 (NEMA 4x)
Display/Operation

Four line display with backlit
Touch control
Outputs

4...20 mA
Pulse / frequency(active/passive)
Relais
Status
Inputs

Status
Current input
Digital communication

HART
PROFIBUS PA
Profibus DP
FOUNDATION Fieldbus
Hazardous area approvals

ATEX, FM, CSA
Product safety

CE, C-tick, EAC marking
Hygienic approvals and certificates

3-A, EHEDG

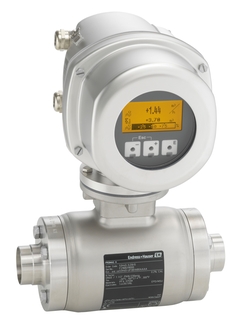

Promag 53H

Predecessor

Successor

Proline Promag H 100 / 5H1B

Proline Promag H 300 / 5H3B

Proline Promag H 500 / 5H5B

Measuring principle

Product headline

Sensor features

Transmitter features

Nominal diameter range

Wetted materials

Measured variables

Max. measurement error

Measuring range

Max. process pressure

Medium temperature range

Ambient temperature range

Degree of protection

Display/Operation

Outputs

Inputs

Digital communication

Hazardous area approvals

Product safety

Hygienic approvals and certificates

Kit P.s.b. 50/51/53 85-260VAC

Kit p.s.b. 50/53 85-260VAC HE

Kit p.s.b. 50/53 85-260VAC HE

Kit P.s.b. 50/51/53 85-260VAC Ex

Kit p.s.b. 50/53 85-260VAC HE Ex

Kit P.s.b. 50/51/53 20-55VAC 16-62VDC

Kit p.s.b.50/53 20-55VAC 16-62VDC HE

Kit P.s.b. 50/51/53 20-55VAC16-62VDC Ex

Kit p.s.b.50/53 20-55VAC 16-62VDC HE Ex

Kit 10 fuses 250 VAC T800 MA

Kit 10 fuses 250 VAC T 2A00

Kit meas. amplifier PMAG 53 WEA EX

Kit meas. amplifier 53 WEA HE Ex

Kit meas. amplifier PMAG 53 WEA

Kit meas. amplifier 53 WEA HE

Kit meas. amplifier PMAG 53 SEA EX

Kit meas. amplifier 53 SEA HE Ex

Kit meas. amplifier PMAG 53 SEA

Kit meas. amplifier 53 SEA HE

Kit meas. amplifier PMAG 53 EES EX

Kit meas. amplifier 53 EES HE Ex

Kit meas. amplifier PMAG 53 EES

Kit meas. amplifier 53 EES HE

Kit meas. amplifier Pmag 53 CN EX

Kit meas. amplifier 53 CN HE Ex

Kit meas. amplifier Pmag 53 CN

Kit meas. amplifier 53 CN HE

Kit amp. 53, HART7, DE+FR+IT+ES+EN, EX

Kit amp. 53,HART7, DE+FR+IT+ES+EN, HE,EX

Kit amp. 53, HART7, DE+FR+IT+ES+EN

Kit amp. 53, HART7, DE+FR+IT+ES+EN, HE

Kit amp. 53, HART7, RU+NL+PT+CS+EN, EX

Kit amp. 53,HART7, RU+NL+PT+CS+EN, HE,EX

Kit amp. 53, HART7, RU+NL+PT+CS+EN

Kit amp. 53, HART7, RU+NL+PT+CS+EN, HE

Kit amp. 53, HART7, ZH+PL+ID+EN, EX

Kit amp. 53, HART7, ZH+PL+ID+EN, HE, EX

Kit amp. 53, HART7, ZH+PL+ID+EN

Kit amp. 53, HART7, ZH+PL+ID+EN, HE

Kit amp. 53, HART7, JA+SV+NO+FI+EN

Kit amp. 53, HART7, JA+SV+NO+FI+EN, HE

Kit commodul Iout passive/Frequency Exi

Kit I/O Iout passive/Frequency HE Exi

Kit commodul Iout active/Frequency Exi

Kit I/O Iout active/Frequency HE Exi

Kit commodul current/freq./2Relay Ex

Kit I/O current/frequency/2Relay HE EX

Kit com 53/55/83/93 curr./freq. out Ex

Kit I/O current/frequency out HE EX

Kit I/O Profibus PA Ex

Kit I/O 50/53/55/80/83 Profib. PA HE Ex

Kit I/O Foundation Fieldbus C02 Ex

Kit I/O Foundation Fieldbus C14 EX

Kit I/O Foundation Fieldbus C02 Ex
