Teqwave H / D9HB

Ultrasonic concentration

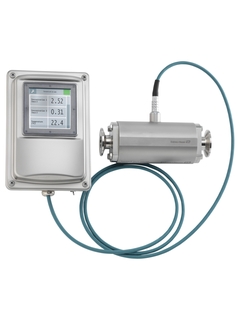

Inline device with best-in-class hygienic design – plug and play for food and beverage processes.
High accuracy and repeatability – concentration calculation with latest algorithms.
Continuous quality monitoring of beverages and in cleaning processes.

Fulfilment of hygienic requirements – easily cleanable full-bore sensor. Full transparency – constant monitoring of product quality without sampling. Highest process safety – reliable metering due to robust, maintenance-free sensor.

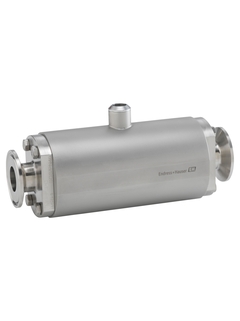

Nominal diameter: DN 25 (1"). Accurate and independent of flow profile. Sensor housing made of stainless steel (3-A, EHEDG).

Customized usage – innovative application concept, expendable for changing measuring tasks. Simplified process control – user-friendly operation and clear status visualization. Local data backup – integrated data storage for measured values up to 7,5 years.

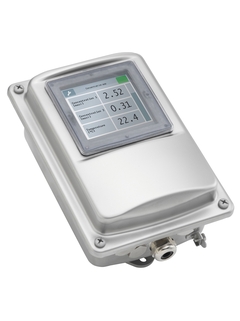

Industry-compliant, easy installation via DIN rail. 3.5" TFT color touch screen or LED indication. 4-20 mA, Modbus TCP.

DN 25 (1“ DIN and ANSI)

Stainless steel1.4404 (316L)

Concentration, sound velocity, temperature, acoustic density, dispersion

Acoustic density: ±0.01g/cm³
Temperature: ±0.5K
Sound velocity: +-2m/s

Concentration According to concentration app data sheet, maximum 0 to 100 %
Sound velocity 600 to 2000 m/s
Temperature maximum 0 to +100 °C (32 to +212 °F)
Acoustic Density 0.7 to 1.5 g/cm³

max. 16 bar at 20 °C (232 psi at 68 °F)

0 to 120°C (32 to 248 °F)

0 to 60 °C (32 to 140 °F)

Stainless steel 1.4404 (316L)

Anodized aluminium and glas, optional 1.4301 and plastic

Sensor: IP67, IP69 optional
Transmitter: IP40, IP67 optional

LED status indication
TFT color touch display

Modbus TCP, Relay (AC 50V, DC30V 1A), 4-20mA/0 to 10V Analog output

2 digital inputs for configuring the display and output during operation.

DC 24V +-20%

Non-hazardous area

CE, UKCA, RCM

3.1 acceptance test certificate

EHEDG, 3-A, seals and wetted parts according to EU1935, FDA and FCM China
