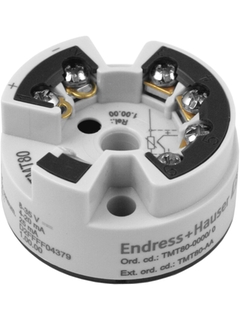

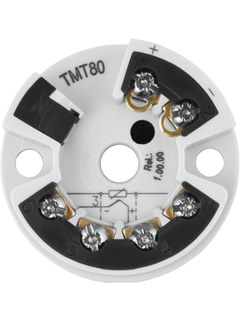

Temperature head transmitter
Transformation of the sensor signals into stable and standardized output signal for all industries
This transmitter is configurable and supports both selected resistance sensor types and thermocouples. In order to obtain the highest measurement precision, linearization characteristics for every type of sensor are stored in the transmitter.
The standardized output signal used for process measurement is a 4 to 20 mA signal. This offers fast, easy and cost-saving temperature measuring and reliable measurement values for a wide range of non-ex industry applications.
2-wire technology, 4 to 20 mA analog output
Fault signal on sensor break or short circuit,
presettable to NAMUR NE 43
Meets the EMC requirements as per NAMUR NE 21
Galvanic isolation 500 V (input/output)
Application specific measuring range setting
Field of application
PC programmable (PCP) temperature head transmitter for converting various input signals into a scalable 4 to 20 mA analog output signal
Suitable for resistance thermometer (RTD) and thermocouple (TC)
Device configuration using PC with configuration kit...
Documents / Manuals / Software
Accessories / Spare parts
The unit is not repairable
Order code 51001112
Spare part set for TMT181/187/188/182
(4 screws, 6 springs, 10 spring rings)
Order code 51000856
DIN rail clip
according to IEC 60715 for temperature head transmitters.
Order code TXU10-
Configuration kit TXU10-
for PC-programmable devices. set-up programme+interface cable for PC with USB-Port.
Order code READWIN-
Readwin 2000 Operation + Read. software
Order code TAF10-
Field housing TAF10
Application: E+H Head transmitter. Housing: Alu IP66, 100x100x60mm.
