Product picture temperature transmitter iTEMP TMT72

iTEMP TMT72 temperature transmitter

HART® temperature transmitter as head, field or DIN rail device with one universal sensor input suitable for use in hazardous areas

TMT72
Loading price
Prices temporarily unavailable
Price on request
activating price
price: provide information
Product picture temperature transmitter iTEMP TMT72
  • F
  • L
  • E
  • X
©Endress+Hauser

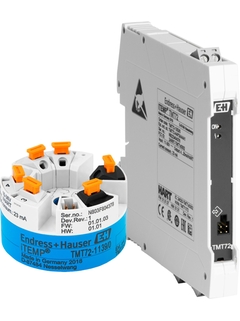

iTEMP TMT72 temperature transmitter as head or DIN rail device

Product picture temperature transmitter iTEMP TMT72
  • F
  • L
  • E
  • X
©Endress+Hauser

iTEMP TMT72 temperature headtransmitter with screw terminals

Product picture temperature transmitter iTEMP TMT72 with TID10
  • F
  • L
  • E
  • X
©Endress+Hauser

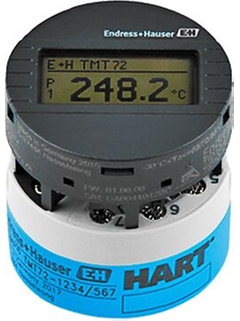

Temperature transmitter with pluggable display TID10

Product picture temperature transmitter iTEMP TMT72 installed in field housing TA30H
  • F
  • L
  • E
  • X
©Endress+Hauser

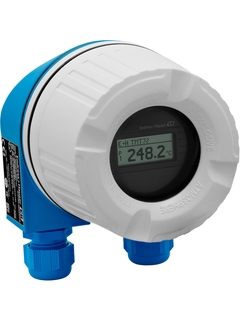

Temperature transmitter installed in a explosion protected field housing

iTEMP TMT72 temperature transmitter as head or DIN rail device

Specs at a glance

  • Accuracy

    (Pt100, -50...200 °C) <= 0,1 K
    (Pt100, -58...392 °F) <= 0,18 °F

Field of application

Unsurpassed reliability, accuracy and long-term stability in critical processes across all industries. The configurable transmitter transfers converted signals from RTD and thermocouple (TC) temperature probes, as well as resistance and voltage signals using HART® communication. Diagnostics information according to NAMUR NE 107. Seamless integration into all major control and asset management systems. Integrated Bluetooth® interface for remote operation via Endress+Hauser SmartBlue App.

  • Bluetooth®-enabled temperature transmitter with HART® communication for the conversion of various input signals into a scalable, analog 4 to 20 mA output signal

  • Improved process efficiency and increased plant uptime

  • Universal input for RTD, TC, resistance transmitters (Ω), voltage transmitters (mV)

  • Installation in terminal head form B (flat face) as per DIN EN 50446

  • Installation in cabinets with DIN rail housing

  • Optional installation in field housing even for use in Ex d applications

Benefits

  • Safe operation in hazardous areas thanks to international approvals

  • Reliable operation thanks to sensor and device monitoring

  • Integrated Bluetooth® interface for the wireless display of measured values and configuration via E+H SmartBlue (app), optional

  • Diagnostics information according to NAMUR NE 107

  • Available with plug-on display TID10

  • Optimization of the measurement accuracy by sensor-transmitter matching.
