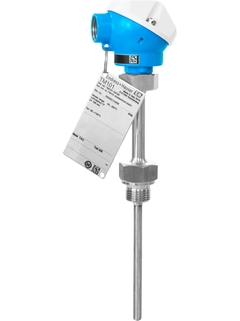

Product picture of RTD or TC thermometer TM101

iTHERM ModuLine TM101
Industrial modular thermometer

Fundamental metric RTD/TC direct contact thermometer for a wide range of industrial applications

TM101
Loading price
Prices temporarily unavailable
Price on request
activating price
price: provide information
from CHF ??.-

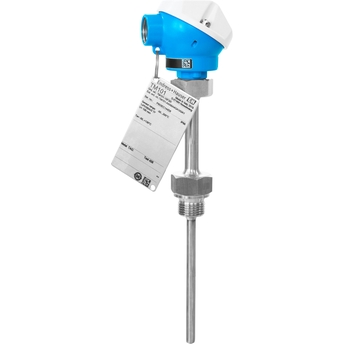

Product picture of RTD or TC thermometer TM101
  • F
  • L
  • E
  • X
©Endress+Hauser

Specs at a glance

  • Accuracy

    Class A acc. to IEC 60751
    Class B acc. to IEC 60751
    Class standard acc. to ASTM E230
    Class 2 acc. to IEC 60584-2

  • Response time

    t90 around 17 s
    depending on configuration

  • Max. process pressure (static)

    depending on the configuration

  • Operating temperature range

    Basic PT100 TF:
    -50 °C …200 °C
    (-58 °F …392 °F)
    Typ K:
    max. 1.100 °C
    (max. 2.012 °F)

  • Max. immersion length on request

    up to 1.000,0 mm (39'')

Field of application

Basic thermometers offer reliable temperature measurement performance with basic sensor technology, a standard extension neck and a fixed, non-replaceable insert for use in non-hazardous areas. The devices are available with optional Bluetooth®-enabled head transmitters with 4 to 20 mA output or HART® communication, providing enhanced measurement accuracy and reliability compared to directly wired sensors.

  • Wide range of applications

  • Measuring range: -50 to +650 °C (-58 to +1202 °F)

  • Pressure range: up to 50 bar (725 psi)

  • Protection class: up to IP68

  • For use in non-hazardous areas

Benefits

  • Excellent value for money and fast global delivery

  • User-friendly product selection, smart design for easy maintenance

  • Wide range of process connections

  • Bluetooth® connectivity (optional)

Fundamental selection

  • Simple products

  • Easy to select, install and operate

Technical excellence
